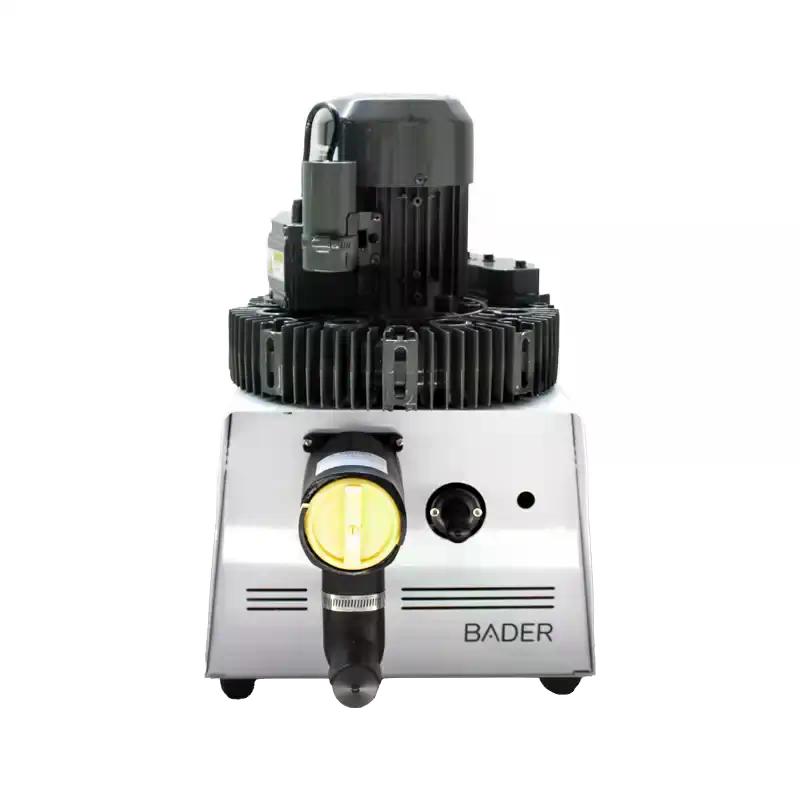

ASPIRATION UNIT 600

VS is short for VACUUM AND SEPARATION units. VS suction units are called wet systems because suction and separation for the entire query is performed centrally on a suction machine. The suction unit is designed for the generation of vacuum for suction of saliva, rinse water and other fluids, which are produced in a dental office during treatment, and which must be taken to the drain.

Integrated vent nozzle ensures maximum constant suction capacity.
It incorporates a sealed suction chamber, which prevents bacterial infection.
58 dB sound level, so it can be installed in small dental clinics without bothering to disturb your sound.
High quality electric motor, continuous running, rotational speed 2900 r.p.m.

Features:

• Maximum net flow of 3.9 l / min. in the surgical aspiration cannula.
• Central suction machine for 2 workstations.
• No drainage required at base of dental unit.
• The air / water separation is produced by suction.
• A single central drain in the engine room.

• Number of Positions: 2-3
• Suction Flow: 500L / m
• Number of positions with 60% toggle: 3 jobs with 2 simultaneous
• Sound level: 58 dBA with solid separator
• Electrical Performance (kW) 0.58 - 0.68
• Voltage (V) 230 (1 ~)
• Frequency (Hz) 50
• With electronic board.
• Maximum Depression: -39KPa
• Rotation Speed: 2900 R.P.M.
• Size: 40x47x58 cm
• Weight: 28kg.
